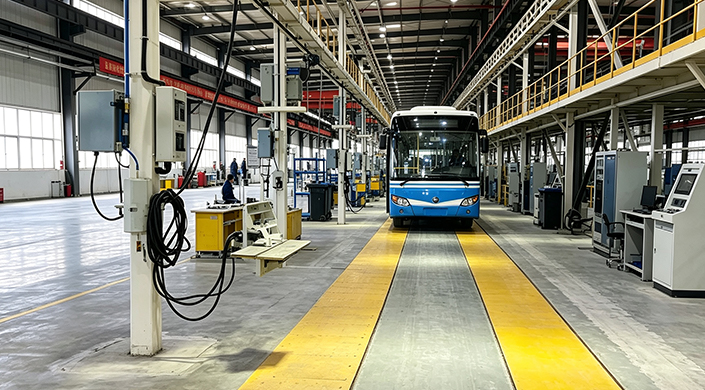

Double Plate Chain Conveyor for Bus Assembly Line

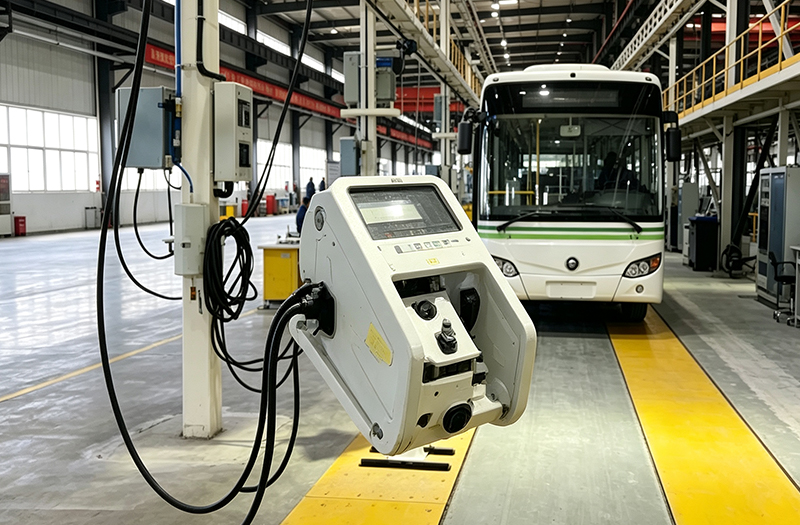

Key Features of Double Plate Chain Conveyor

High Load Capacity： Suitable for large buses and commercial vehicles.
Stable Conveying: Synchronized dual-chain operation ensures smooth vehicle transport.
Heavy-Duty Structure： Features a heavy-duty mechanical structure designed for continuous production.
Accurate Positioning： Utilizes stopping and positioning mechanisms to ensure precise vehicle stops at workstations.
Flexible Layout： Conveyor routes can be customized to fit the factory layout and production process.
Low Maintenance： Proven structural design facilitates easy daily inspection, lubrication, and maintenance.
Customized Design： Designed according to vehicle models, production capacity, cycle times, and factory dimensions.
Automation Ready： Compatible with PLCs, sensors, and automated control systems.

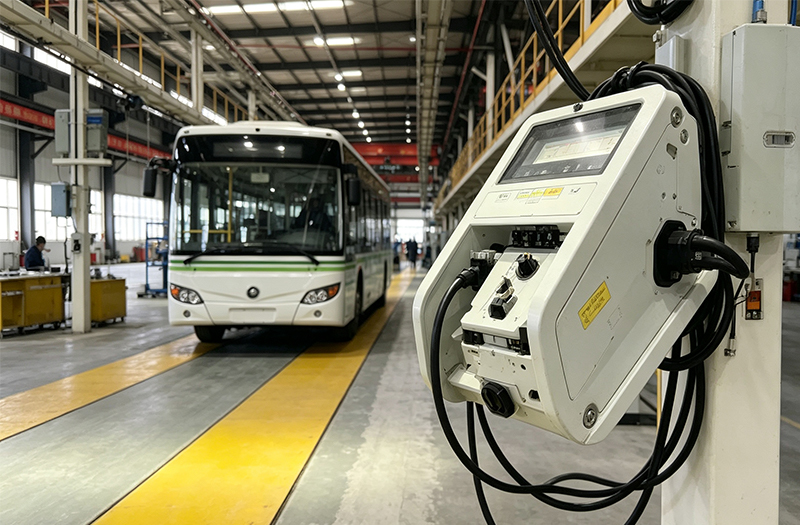

Doubl Chain Plate

Components
Conveyor Chain: This is the main conveying component of the system, which is usually made of high-strength steel and can withstand heavy loads and high-intensity working environment.
Chain Plate: A flat plate mounted on the chain that provides a smooth surface for placing and transferring parts or bodies.
Drive: Usually consists of an electric motor and reducer to provide power to move the chain.
Guides: Used to support and guide the movement of the chain to ensure it runs smoothly along a predetermined route.
Control System: Includes PLC (Programmable Logic Controller), sensors and other control equipment to monitor and control the automated operation of the entire conveying process.
Working Principle
Veneer Chain Conveyor System drives the chain through an electric motor to move it along the guide rail. The parts or bodies on the chain move along with the chain and are transferred from one station to the next. The control system detects the position and status of the chain by means of sensors and PLC to ensure the accurate transfer of materials and the coordinated operation of the whole production line.

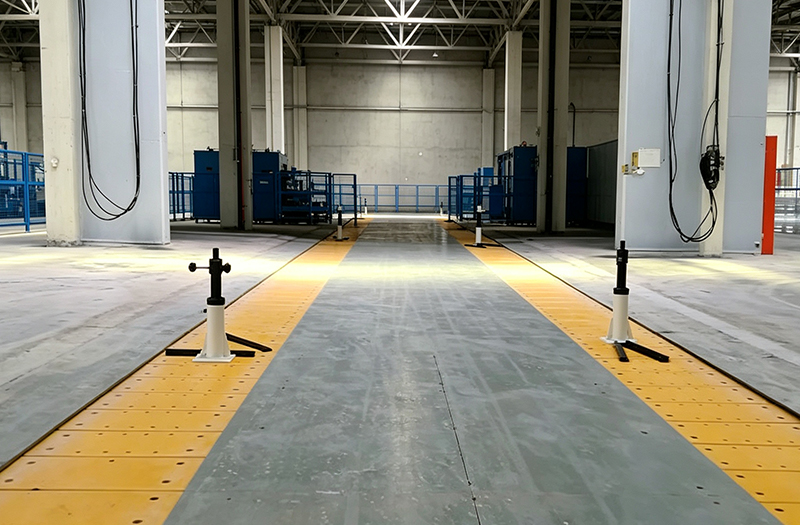

Advantage of Doubl Chain Plate

Advantages
High loading capacity: the ground rail chain system is able to withstand large weights and is suitable for transferring heavy materials.
Stable: Ground-mounted rails provide a stable transfer path, reducing vibration and shaking.
Efficient: Automated conveyor systems greatly improve production efficiency and reduce manual operations.
Flexibility: The system can be customized according to production needs and adapted to different production processes.
High safety: Equipped with a variety of safety devices to protect the safety of operators.

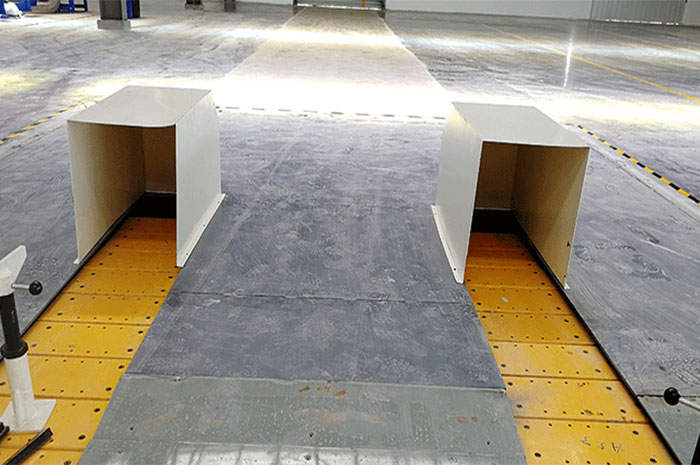

Application Scenarios of Double Chain Plate

Application Scenarios of Double Chain Plate
General assembly line: for transferring the whole vehicle body or the assembled part of the vehicle.
Welding workshop: transferring the car body in the welding process to ensure the material supply of each station.
Paint shop: transmits the car body for painting operation to ensure the continuity of the painting process.
Parts production line: transmits heavy-duty parts such as engine and gearbox.
Maintenance and upkeep
Regular inspection: check the wear and tear of chains, tracks and carriers, and replace or repair them in time.
Lubrication maintenance: Regularly lubricate chains and drives to keep the system running smoothly.
Cleaning maintenance: Keep the track and system clean to prevent dust and debris from interfering with operation.
Tensioning Device Inspection: Ensure proper chain tension to prevent slack or over-tightening.
Control System Maintenance: Regularly check the control system and sensors to ensure that they work properly.
Development trend
With the development of automation and intelligent manufacturing technology, the floor track chain conveyor system is also progressing, mainly reflected in the following aspects:

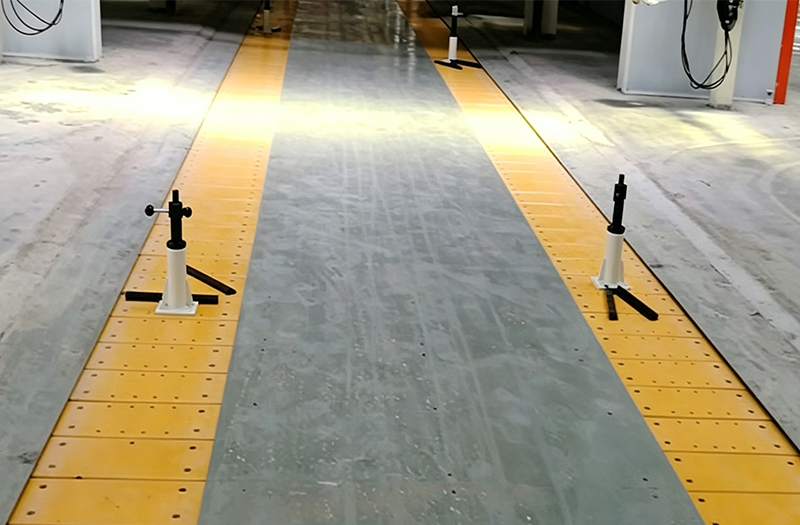

Operational performance of the double plate chain conveyor

Performance

Technical Item	Performance
Conveyor Type	Double Plate Chain Conveyor
Application	Bus / Coach / Commercial Vehicle
Conveyor Position	Floor-mounted
Conveying Method	Double-chain driven
Load Capacity	Customized according to vehicle weight
Conveying Speed	Adjustable according to production takt
Vehicle Positioning	Available
Transfer	Available
PLC Control	Optional
Safety System	Available
Carrier / Trolley	Customized
Conveyor Layout	Customized

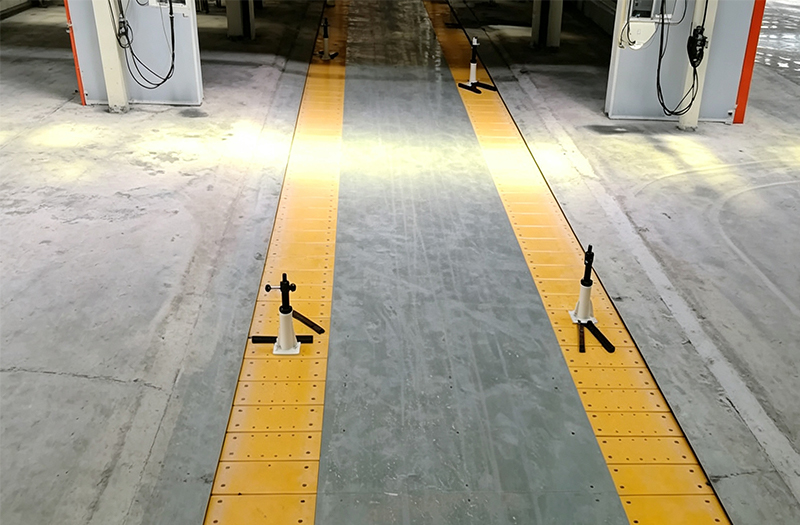

What We Offer

Our Double-Plate Chain Conveyor Solutions

China Vehicle Industry Co., Ltd. provides customized double-plate chain conveyor systems for bus, coach, and commercial vehicle assembly plants.
Design → Manufacturing → Delivery → Installation → Commissioning → Training → Production Support

We offer more than just double-plate chain equipment; we provide a complete engineering solution for bus assembly lines.
