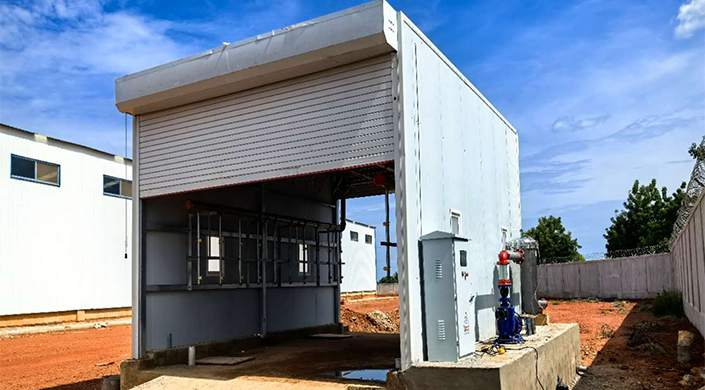

Automotive Rain Test Chamber for Vehicle Inspection Line

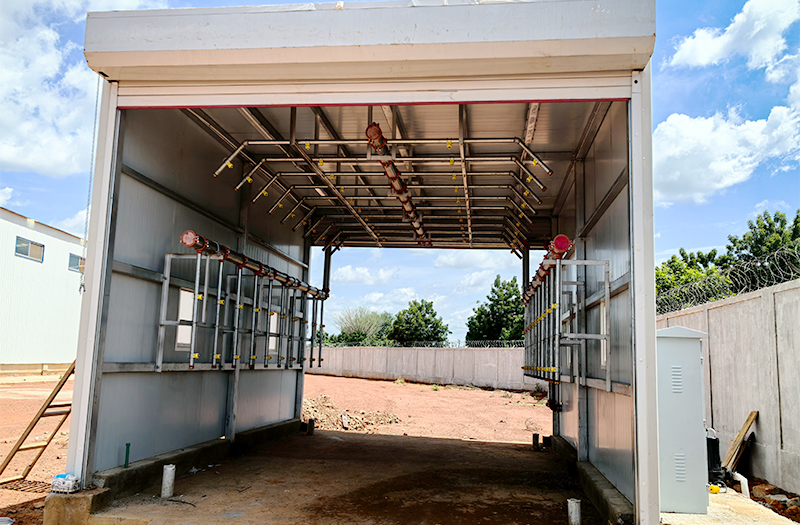

Introduce of rain test chamber

After vehicle assembly, the vehicle enters the rain test chamber and passes through a controlled water spraying system. Water is sprayed onto the vehicle from multiple directions to simulate heavy rainfall. The operator then checks the vehicle interior and critical sealing areas for water penetration or leakage.

The system can be integrated into the automotive final inspection line and is suitable for passenger cars, SUVs, vans, buses, trucks and other commercial vehicles.

Advantage of Rain Test Chamber

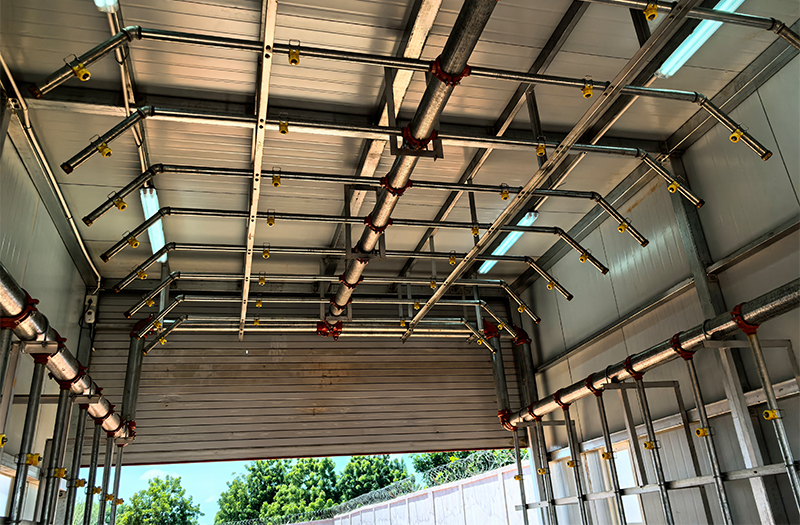

Uniform Water Spraying: Multiple spray nozzles are arranged around the test chamber to provide relatively uniform water coverage over the vehicle body.
Adjustable Rainfall Conditions: The water flow and spraying parameters can be configured according to the vehicle model and testing requirements.
Water Recycling System: The collected water can be filtered and circulated for reuse, reducing water consumption.
Suitable for Different Vehicle Models: The chamber can be customized for different vehicle dimensions and is suitable for: Passenger cars, SUVs, Vans, Pickup trucks, Buses, Trucks, Electric vehicles
Integration with Inspection Line: The rain test chamber can be integrated with the automotive final assembly line and vehicle inspection line.
Corrosion-Resistant Structure: The chamber structure and components can be selected according to the humid working environment and long-term production requirements.

Application Scenarios

Passenger Car Production: Used at the end of passenger car assembly lines to check body sealing and water leakage before vehicle delivery.
Bus Manufacturing: For buses and coaches, the rain test can cover large body surfaces, roof areas, doors and windows.
Truck Production: Used for trucks and commercial vehicles to check cabin sealing, doors, windows and other water-sensitive areas.
EV Production: For electric vehicles, the system can be incorporated into the final inspection process to check body sealing and relevant exterior components.
CKD/SKD Assembly Plants: For CKD/SKD vehicle assembly projects, the rain test chamber can be installed as part of the complete vehicle inspection line.

China Vehicle Industry Co., Ltd. can provid

What we can do

China Vehicle Industry Co., Ltd. can provide:

Automotive rain test chamber
Vehicle water leakage testing system
Water circulation system
Spray nozzle system
Vehicle positioning / conveying system
Automatic control system
Inspection line integration

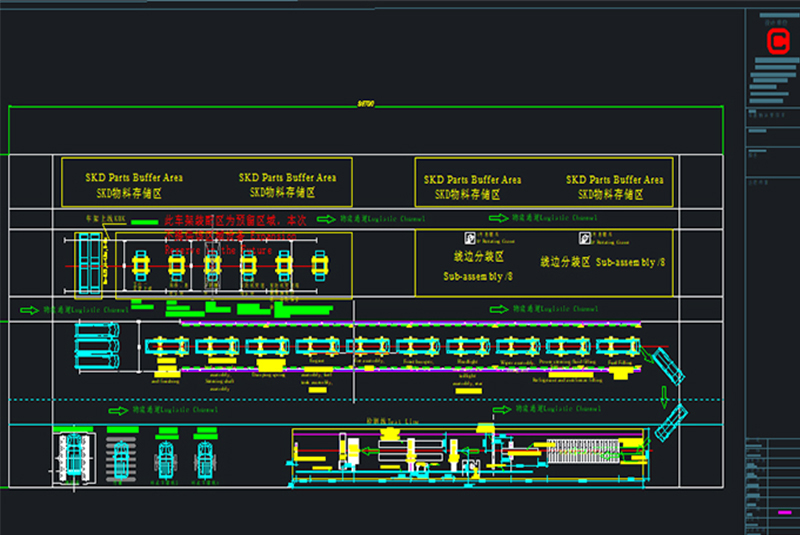

Plant layout design

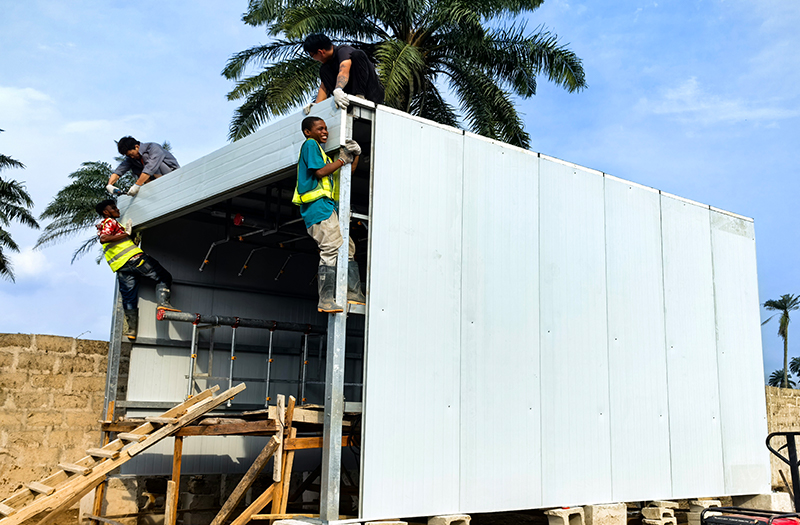

Equipment installation
Commissioning
Operator training
After-sales technical support
