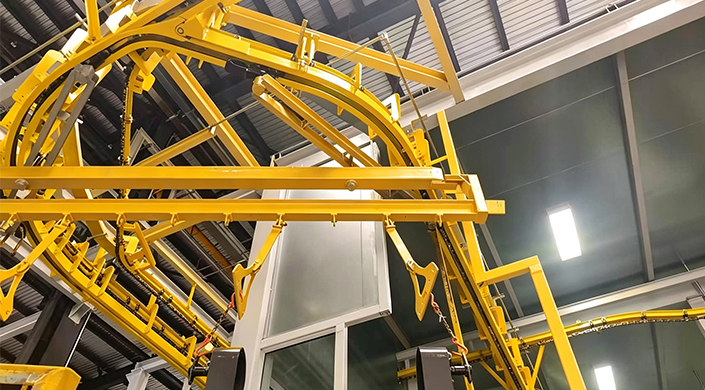

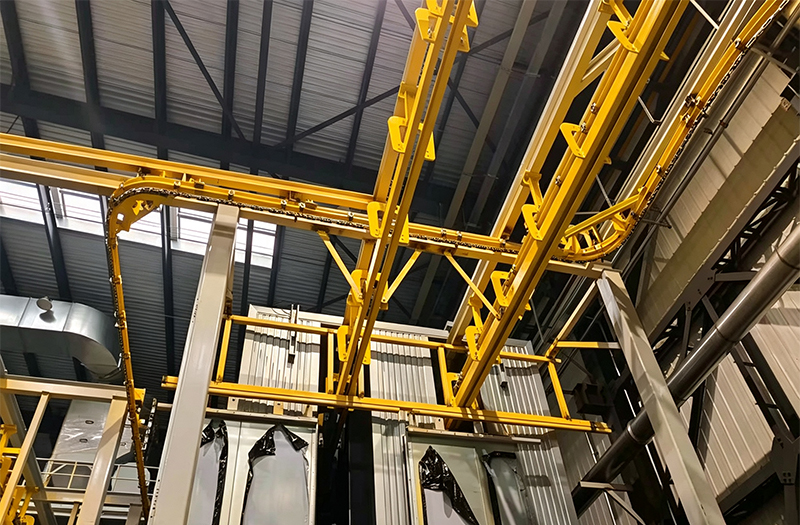

Automotive Power & Free Conveyor System

Power & Free Conveyor System is a flexible overhead conveying solution widely used in automotive manufacturing and vehicle assembly plants. It combines continuous power-driven movement with independent free trolley movement, allowing vehicles, bodies, chassis or components to be conveyed, accumulated, buffered, stopped, transferred and sequenced according to the production process.

Compared with a conventional continuous conveyor, the Power & Free system provides greater flexibility for production-line layout and vehicle flow management.

China Vehicle Industry Co., Ltd. can provide customized Power & Free Conveyor Systems according to vehicle type, production capacity, plant layout, process requirements and automation level.

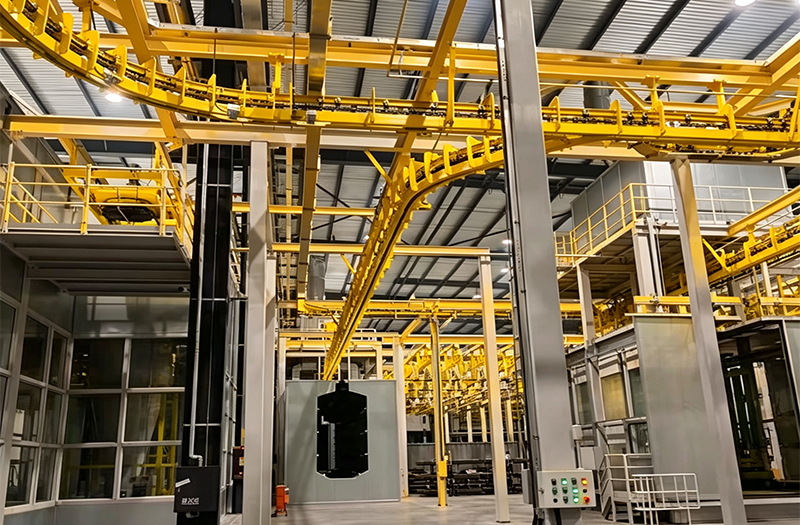

Main functions of the Power & Free Conveyor

Continuous Conveying： Vehicles or process carriers are continuously driven by a power chain, ensuring stable transport.
Accumulation： When downstream stations have no immediate production demand, workpieces can accumulate and be buffered in designated areas, reducing the risk of stopping the entire production line.
Stop & Go： Each process carrier can operate according to specific process requirements: Start → Convey → Stop → Process → Restart
This is ideal for stations on automotive final assembly lines where the vehicle must remain stationary for assembly tasks.

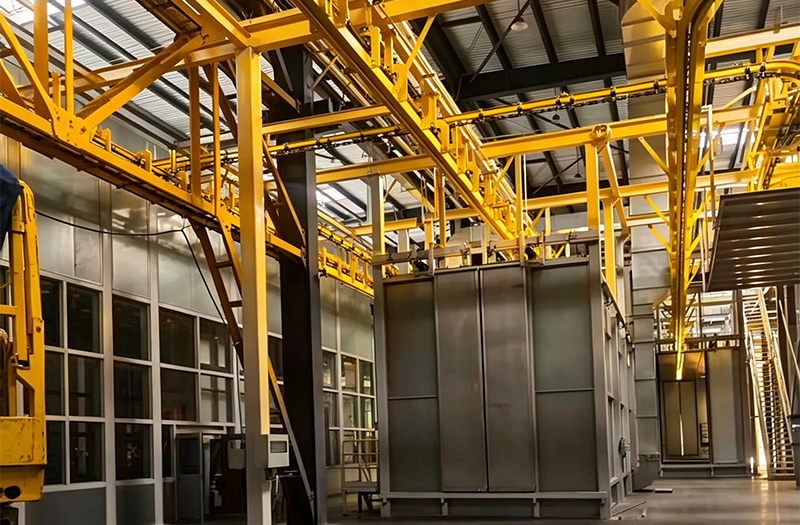

Production Sequencing

Vehicles can be sequenced and their spacing controlled according to the production plan, enabling:
Vehicle sequencing
Production buffering
Model changeover
Line balancing

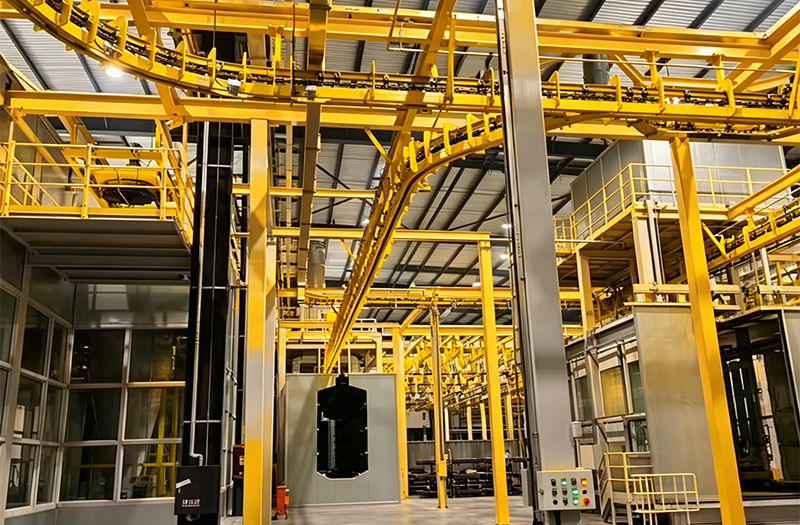

Transfer & Routing

Based on the production line layout, the system can be designed for:
Straight conveying
Curve conveying
Transfer
Diverging
Merging
Elevating
Parking

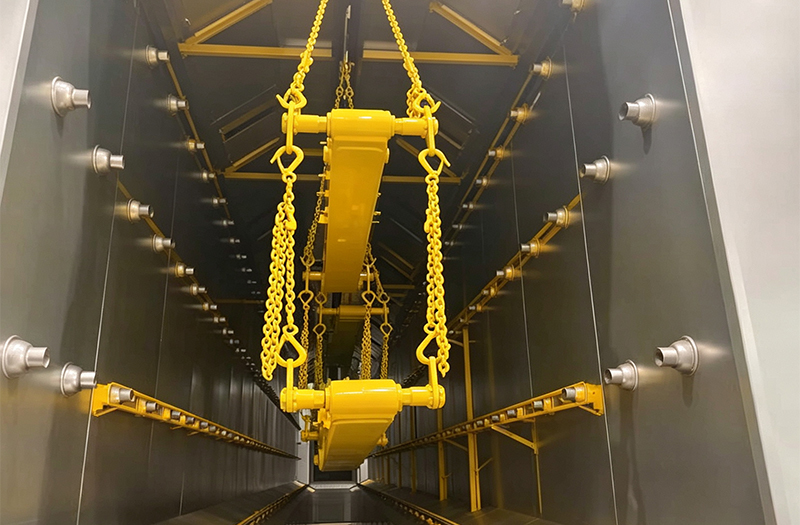

Advantage of the Power & Free Conveyor

Performance of the Power & Free Conveyor

Key System Components of the Power & Free Conveyor

High Load-Bearing Capacity: Designed specifically for automotive manufacturing environments, the chain, track, drive system, and carriers can be customized based on vehicle models and the weight of process trolleys。 Suitable for: Passenger Cars,SUVs,Pickup,Trucks,Trucks,Buses,Commercial Vehicles
Flexible Accumulation
Enhanced Production Line Flexibility
Factory Space Savings: Suitable for automotive production areas such as: Body Shop → Chassis Line → Final Assembly → Inspection
Adaptability to Complex Production Processes： Straight + Curve + Transfer + Accumulation + Parking
Easy Maintenance

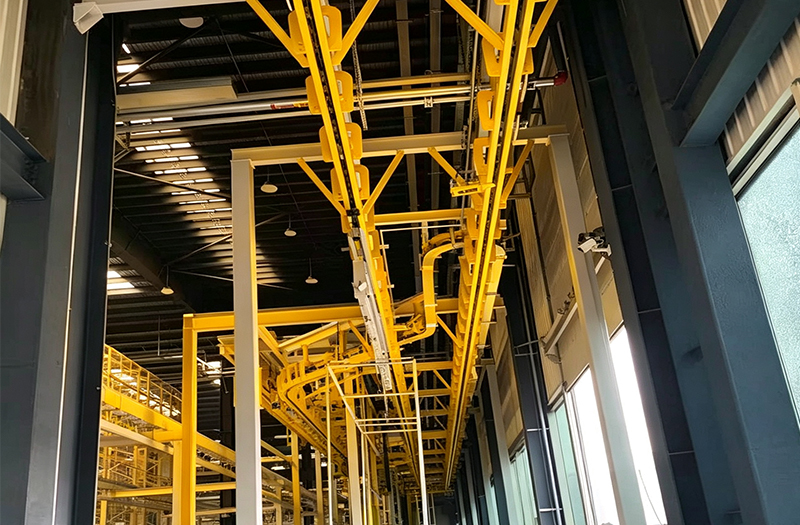

Performance of the Power & Free Conveyor

Conveyor Type	Power & Free Conveyor
Conveying Mode	Overhead / Floor-mounted options
Load Capacity	Customized according to vehicle and trolley weight
Conveyor Speed	Adjustable according to production takt
Accumulation	Yes
Stop & Go	Yes
Vehicle Sequencing	Available
Buffering	Available
Transfer	Available

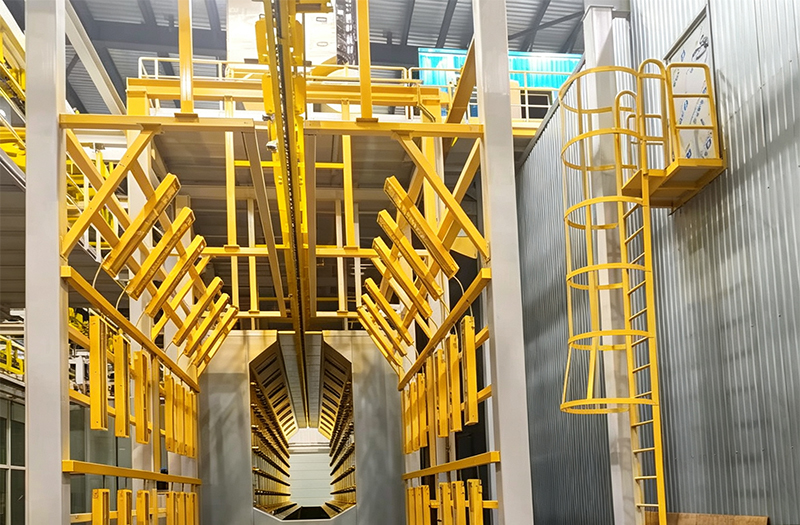

Performance of the Power & Free Conveyor

Diverging & Merging	Available
Production Mode	Continuous / Intermittent
Automation Level	Manual / Semi-Automatic / Automatic
Control System	PLC-based control available
Application	Body, Chassis & Final Assembly
Vehicle Types	Car / SUV / Pickup / Truck / Bus
Layout	Customized
Trolley	Customized
Hanger	Customized
Installation	Turnkey service available

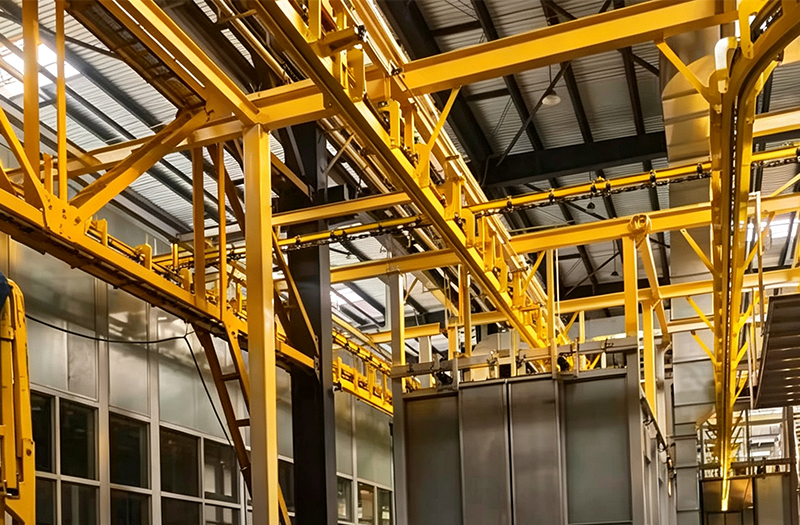

Key System Components of the Power & Free Conveyor

A complete "Power & Free" conveyor system typically includes:

Conveyor System Components
Power chain, free trolleys, load bars, carriers, hangers, tracks, drive units, tensioning devices
Chain guides, track systems, lubrication systems

Functional Components
Stops, pushers, accumulation zones, transfer units, lifting units, turning units, diverters
Mergers, parking sections, buffer sections, positioning devices

Control Systems
PLC control systems, sensors, proximity sensors, photoelectric sensors, motor controls
Safety interlocks, emergency stops, Human-Machine Interface (HMI), production tracking systems

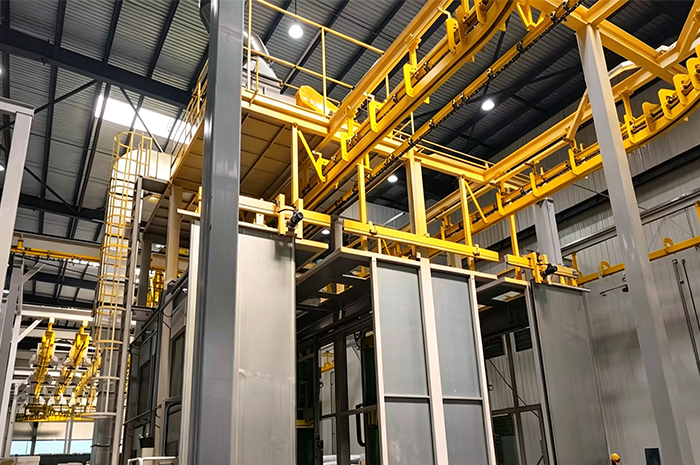

Our Power & Free Conveyor Solutions

China Vehicle Industry Co., Ltd. provides comprehensive, customized Power & Free conveyor solutions for automotive manufacturing and final assembly plants.
